Phase 2

Pasig River Project Phase 2

This portion is located after the first phase of the development, behind the Bureau of Immigration. The area consists of a long, 6-meter-wide open public space, with a single-storey structure [ Phase 1C featuring a roof deck along the stretch of the Pasig River ] that consists of a walkway and commercial spaces on the ground level and a bike lane, walkway, and viewing area at the roof deck.

A. Ground Floor

  • Walkway and walkable space adjacent to the Pasig River, protected by railings on the side facing the river and lined by commercial establishments on the other, typically three meters wide.

B. Commercial Space

  • A leasable space adjacent to the walkway typically 2.50m in height.
  • Either naturally ventilated or air-conditioned.
  • Air-conditioned commercial spaces will be enclosed from floor to ceiling and will use split-type air conditioning units.
  • Naturally ventilated commercial spaces may be built as kiosks.
  • The commercial establishments shall have their sewage water treated through the provision of Sewage Treatment Plant [ STP ].
  • All commercial establishments shall be installed with Fire Detection and Protection System (i.e. fire sprinkler system, smoke detectors, etc.)
  • All commercial establishments will have their own electric and water meters/sub-meters.
  • Air-conditioned commercial establishments will be installed with Filtered Air Supply Units and Mechanical Ventilation System [ i.e. Exhaust System ].
  • Restrooms for men and women will also be placed in the commercial area at strategic locations for public use.

C. Deck

  • Walkway
  • Walkable open space on the roof deck typically 2.50 meters wide.
  • Has viewing balconies on one side and a bike lane on the other.

D. Viewing Deck

  • Located along the stretch of the roof deck walkway and adorned with intricate balusters that serve as railings on the side facing the river.

E. Bike Lane with Landscaping

  • A two-way bike lane adjacent to the walkway which is lined by plant boxes that double as railings to the side facing the road.

Present

Activities

Before & After

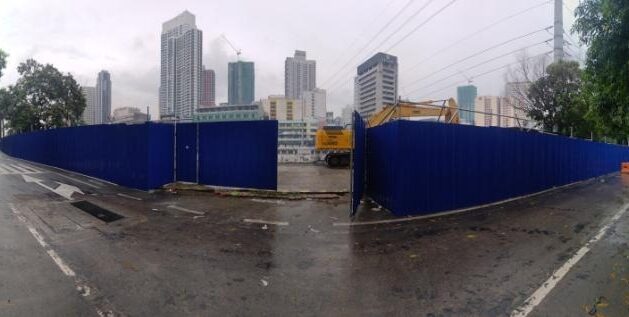

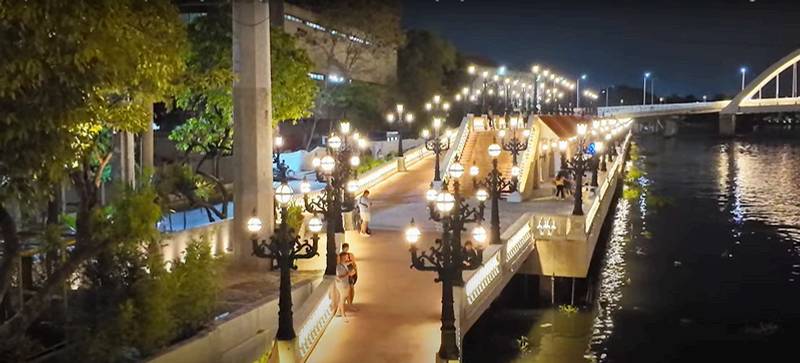

Before Image After Image
Before After

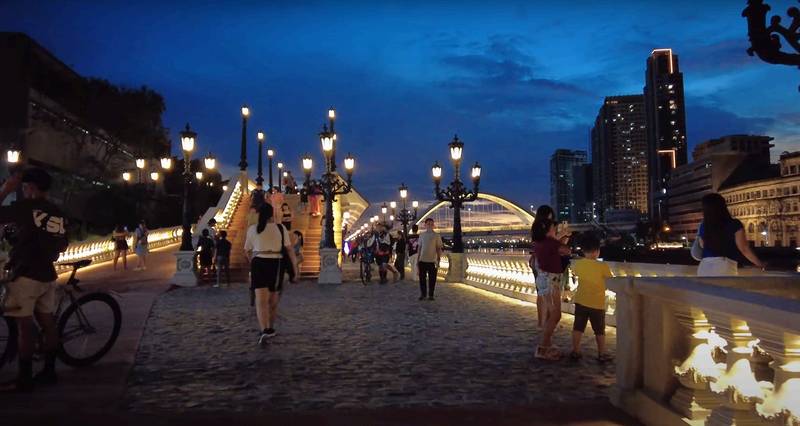

Before Image After Image
Before After
